Excellent barrier properties: oil (MOSH/MOAH, Grease (KIT) 6–12), water vapour (WVTR (23°/50% RH, <1 g/m²/day) and oxygen (OTR 23°/50% RH, <1 g/m²/day).
FlexCoat
Request a data sheetFOR HIGH-QUALITY PAPER-BASED PACKAGING
FlexCoat reliably protects selected food and non-food products against oxygen, water vapour and fat-related spoilage. It is particularly suitable for thin, flexible paper structures.
Dispersion curtain coating technology enables precise multi-layer coatings with up to 90 per cent paper content and optimised barrier and sealing properties.
TECHNICAL SPECIFICATIONS
Basis weight:
55–120 g/m²
Barrier:
grease, water vapour, oxygen
Coating:
1–5 layers, PO, acrylate, PVOH
Applications:
Confectionery, ice cream, snacks and dry foods. Not intended for: Liquids or drinks.
TECHNOLOGY
COATED WITHOUT CONTACT, GENTLY DRIED
FlexCoat papers are produced using the dispersion curtain coating process. In this process, the coating is applied to the paper as an even curtain without coming into contact with it. This allows several coating layers to be precisely coordinated with one another, thereby achieving specific barrier and sealing properties.
A floating dryer enables the coating to be dried slowly and without contact, whilst an integrated re-humidification system further supports the paper’s dimensional stability and counteracts so-called ‘tubing’.
The result: precisely coated papers with optimised barrier and surface properties for demanding packaging applications.
DOCUMENTED RECYCLING PROPERTIES
Measurable circulatory capacity
FlexCoat combines up to 90 per cent paper content with functional barrier and surface properties. For tested product variants, FSC® certification (FSC-C020254) is available for the fibre raw materials used, as well as a CEPI/4evergreen assessment of recyclability. This evidence supports your product assessment and customer documentation.
The information applies to the respective product variant and material structure. The recyclability of the finished packaging also depends on its design, processing and regional recycling systems.
Product features
What FlexCoat does
-
Barrier performance
-
Surface

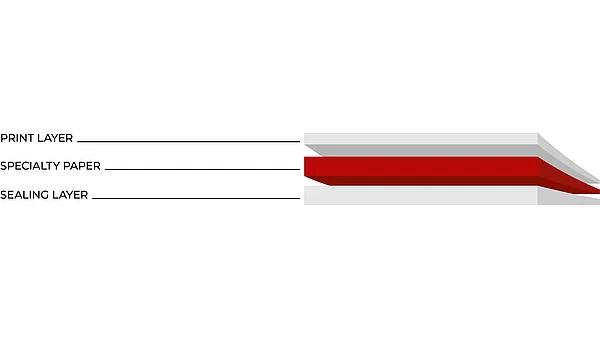

Tear-resistant front-side coating, 1–5 layers, layer thickness 8 µm–50 µm, raw materials: polyolefin and acrylate dispersions + PVOH, contactless drying, integrated re-humidification to prevent tubing.
-
Printability
Superb print results in offset, gravure, flexo and digital printing for a striking display at the point of sale.
-
Sealability
Seam strength and product protection: Moderate sealing strength.
-
Machine operation
Optimised for existing packaging lines. No major modifications required and a direct drop-in replacement for plastic films with a grammage of 55–120 gsm.
-
Future-proofing
Certified to CEPI4evergreen and FSC® standards. 80–90 per cent paper content; recyclable thanks to a material-efficient coating and clean separation of the coating from the substrate.
All product details sent directly by email
Request a data sheet
Produktübersicht FlexCoat
FlexCoat
| Produktname | g/m² | Festigkeit | Barriereleistung | Bedruckbarkeit | Siegelfähigkeit | Recyclingfähigkeit | Datenblatt |
|---|---|---|---|---|---|---|---|
| FlexCoat barrier+ 90 | 90 | Flexibel | Ja | Ja | Datenblatt | ||
| FlexCoat seal 80 | 80 | Alle | Ja | Ja | Datenblatt |
Barriereleistung:
